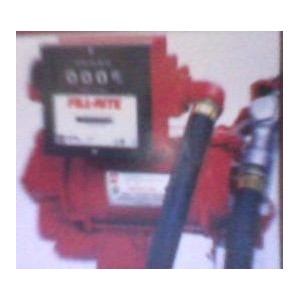

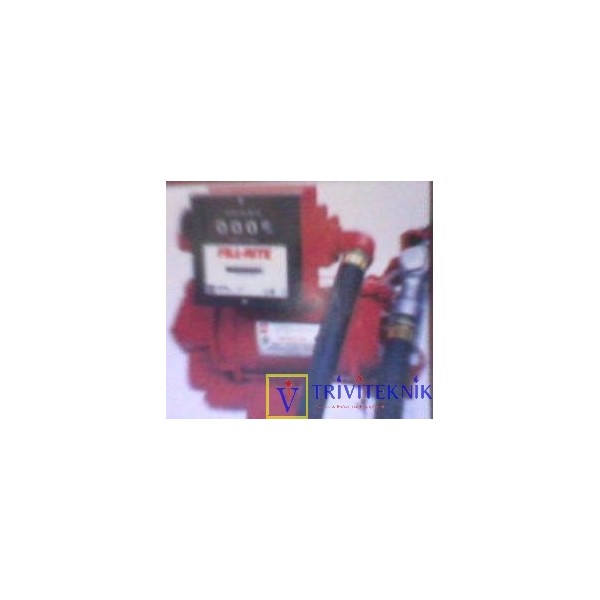

Transfer System AC Fuel pump

TUTHILL Transfer System AC FUEL TRANSFER PUMPS

FILL RITE FLOW METER SERIES 300

More details

More info

TUTHILL Transfer System AC FUEL
TRANSFER PUMPS FLOW
METER FILL - RITE SERIES 300.
Model FR311 132 LPM Spesipication

Construction - pump housing :
Cast Iron
Maximum flow rate with factory :
35 GPM 9 132 LPM )
Rotor Composition : Iron
Explosion-proof motor with ball bearing:3/ 4 HP
AC / hertz :
Dual Voltage 115/ 230 VAC 50-60Hz
Inlet : 11/ 2 " NPT
Outlet : 1 " NPT
Tank Adaptor ; 2 " NPT
Approvals : UL, CUL, CSA Listed
Duty Cycle : 30 minute
Box Contens : 1 " x 12' ( 3.7m )
Nozzles : 1 " manual
Application :
= = = = = = = = =
DIESEL FUEL
GASOLINE
KEROSENE
MINERAL SPIRITS
STODDARD SOLVENT & HEPTANE
