AFH 32F Bottom Loader OPW

AFH 32F Bottom Loader OPW

A Frame Hose Loading Arm AFH 32F Bottom Loader OPW

Lebih detail

Dijual Dijual!
Rp‎ 0.00 sudah pajak

Ketersediaan: Barang ini telah habis.

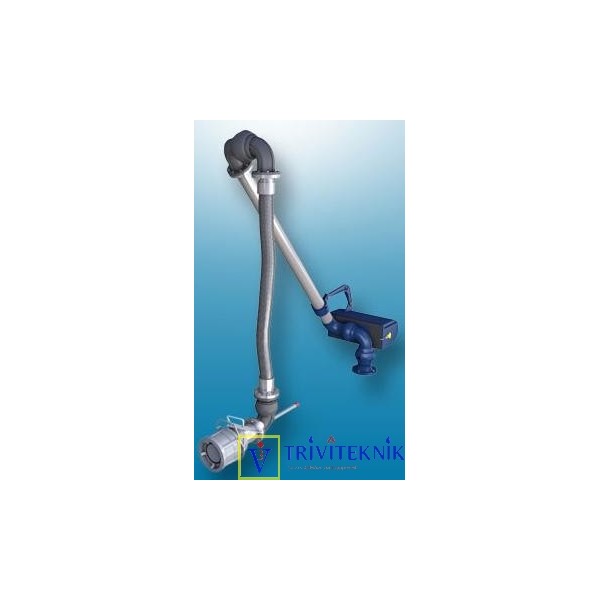

"A" Frame Hose Loader AFH-32-F

This spring balanced hose loader offers the same advantages as the conventional “A”-frame arm except flexible hose is used instead of rigid piping on the secondary arm.
This arm can be staggered to achieve crossover and conformance to the API envelope requirements. “A”-frame hose loaders are normally stored in an upright, near vertical position making it possible to load from both sides of the island.
In addition to bottom loading, the “A”-framehose loader is often used as a vapor arm in fuel terminals and can be adapted for use in top loading and unloading applications.

2” –4” sizes available

Carbon Steel, Stainless Steel and Aluminum options

Low riser mounting heights

Choice of flanged, threaded or all welded construction

Fully customizable
