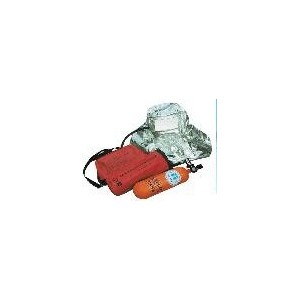

Alat bantu pernapasan darurat huayan EEBD TH10
Alat bantu pernapasan darurat huayan EEBD TH10
Alat bantu pernapasan darurat huayan EEBD TH10
Alat bantu pernapasan darurat huayan EEBD TH10
Range of application:
the atmosphere polluted by heavy smoke, toxic gas or hot vapor;
the temperature of -30°C~+60°C with 0~100% relative humidity and atmosphere pressure of 0.7 bar~1.25 bar.
Main performance index
Pressure reducer’s chamber pressure: ( 6.5±2) bar
Rated working duration: TH10: ≥10min; TH15: ≥15min
Absolute value of breathing resistance: ≤300Pa
Cylinder’ s rated working pressure: 210 bar
Cylinder’s effective capacity: TH10: 2.2L; TH15: 3.2L
ration supplied of air: ≥40L/min
Total weight: TH10:≤6Kg; TH15:≤8.5Kg
Package size (mm): TH10: 480×150×250mm
