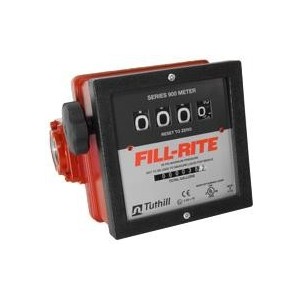

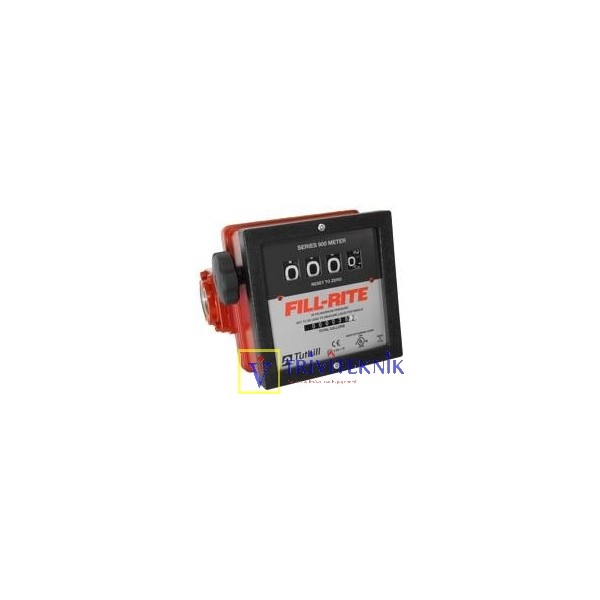

FILL RITE 900 Series Mechanical Flow Meters

Lebih detail

Info lainnya

Flow Meters Series 901 operates at 6 to 40 GPM ( 23 to 151 LPM) , with accuracy of ± 2% . The easy reset register indicates product use up to 999.9 gallons or 9, 999 liters. The master totalizer registers up to 9, 999, 999 gallons/ liters. Large, easy to read numbers. Measure fluids at temperatures up to 150° F ( 63° C) and pressures up to 50 PSI ( 3.4 bars) . Quick reset knob
Flexible flow ports can be positioned vertically or horizontally. UL/ cUL listed

Options:
Gallon or liter reading
1 " or 1-1/ 2 " ports
Teflon ® or nickel coatings increase selection of compatible fluids
BSP threads

Applications:
Designed for metering diesel fuel, gasoline, kerosene, mineral spirits, stoddard solvent and heptane
